Robust shaftless screw

sale of spirals, sale of worm gears, spiral, spirals, spiral conveyor, spiral, worm, worm, worm conveyor, worm gears

Based on our business experience, we offer robust spirals from 25 mm to 800 mm. Dimensions are usually immediately available from our warehouse.

RL and RLN spirals (robust and robust stainless steel) are sold in production lengths, in case of exact length requirement different from production length, we charge preparation fee + weld.

robustní spirála
robustní spirála
robustní spirála
kompozitní robustní spirála

Conveyor made from

SPIRAL:

  • Type RL - steel (according to EN - S235, S355)
  • Type RLN - stainless steel (according to ASTM - AISI 304, AISI 310, AISI 316)
  • Type RLP - composite (plastic + steel)

Contact us

+420 387 240 910
rataj@rataj.cz

Request a product

Types of robust spirals

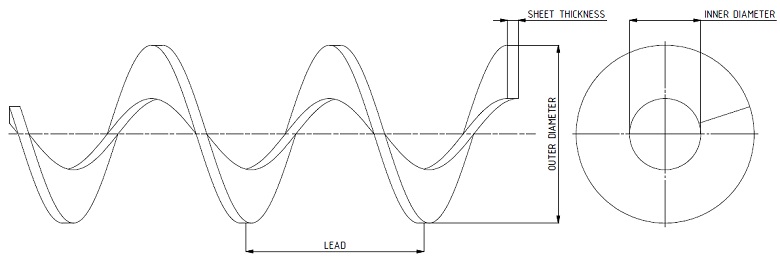

Type Spiral outside diameter Thread pitch Spiral inside diameter Spiral thickness (inner/outer) Spiral material
  (mm) (mm) (mm) (mm)
Robust shaftless screw RLN 25 25 15 12 6 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RLN 28 28 25 10 3,5 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RLN 28 28 25 10 4,5 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RLN 32 32 25 10 3,5 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RL 45 45 45 15 5 Steel (EN - S235, S355)
Robust shaftless screw RLN 45 45 40 15 5 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RLN 50 50 50 14 3,5 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RLN 50 50 60 20 8 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RLN 55 55 80 27 6,5/5 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RL 60 60 60 20 5 Steel (EN - S235, S355)
Robust shaftless screw RLN 60 60 30 30 3,5 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RL 66 66 75 42 12,5/11 Steel (EN - S235, S355)
Robust shaftless screw RL 75 75 80 27 6 Steel (EN - S235, S355)
Robust shaftless screw RLN 75 75 80 27 5 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RLN 77 77 75 37 8 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RL 80 80 65 27 7/5 Steel (EN - S235, S355)
Robust shaftless screw RL 80 80 80 22 6 Steel (EN - S235, S355)
Robust shaftless screw RL 80 80 80 22 7,5/5 Steel (EN - S235, S355)
Robust shaftless screw RLN 80 80 65 27 5 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RLN 80 80 80 27 5 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RLN 80 80 80 27 6 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RLN 80 80 100 27 6 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RL 90 90 60 34 7/5 Steel (EN - S235, S355)
Robust shaftless screw RL 90 90 90 34 6 Steel (EN - S235, S355)
Robust shaftless screw RL 90 90 90 34 10/6,5 Steel (EN - S235, S355)
Robust shaftless screw RL 90 90 110 50 22/18,5 Steel (EN - S235, S355)
Robust shaftless screw RLN 90 90 60 34 5 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RLN 90 90 90 34 6,5/5 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RLN 90 90 90 34 8 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RL 100 100 75 34 6 Steel (EN - S235, S355)
Robust shaftless screw RL 100 100 100 27 6 Steel (EN - S235, S355)
Robust shaftless screw RL 100 100 100 34 6 Steel (EN - S235, S355)
Robust shaftless screw RL 100 100 100 60 22/18,5 Steel (EN - S235, S355)
Robust shaftless screw RLN 100 100 75 34 5,5/4 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RLN 100 100 100 34 7/5 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RL 105 105 80 48 6 Steel (EN - S235, S355)
Robust shaftless screw RL 110 110 75 34 6 Steel (EN - S235, S355)
Robust shaftless screw RL 110 110 80 34 15,5/9,5 Steel (EN - S235, S355)
Robust shaftless screw RL 110 110 110 34 6 Steel (EN - S235, S355)
Robust shaftless screw RL 110 110 110 34 12 Steel (EN - S235, S355)
Robust shaftless screw RLN 110 110 110 34 5 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RLN 110 110 110 34 7,5/4,5 Stainless steel (ASTM - AISI 316)
Robust shaftless screw RLN 110 110 110 34 8 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RLN 110 110 110 34 11/7,5 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RL 120 120 75 34 6 Steel (EN - S235, S355)
Robust shaftless screw RL 120 120 80 38 6 Steel (EN - S235, S355)
Robust shaftless screw RL 120 120 105 38 9/6 Steel (EN - S235, S355)
Robust shaftless screw RL 120 120 105 44 5 Steel (EN - S235, S355)
Robust shaftless screw RL 120 120 120 38 15/10 Steel (EN - S235, S355)
Robust shaftless screw RL 120 120 120 38 6 Steel (EN - S235, S355)
Robust shaftless screw RL 120 120 120 38 8 Steel (EN - S235, S355)
Robust shaftless screw RL 125 125 125 80 15 Steel (EN - S235, S355)
Robust shaftless screw RLN 120 120 80 38 5 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RLN 120 120 120 38 5 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RLN 120 120 120 38 8 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RLN 120 120 120 40 10 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RL 130 130 140 48 10/6,5 Steel (EN - S235, S355)
Robust shaftless screw RL 140 140 100 49 8 Steel (EN - S235, S355)
Robust shaftless screw RL 140 140 140 40 11/8 Steel (EN - S235, S355)
Robust shaftless screw RL 140 140 140 48 9,5/6,5 Steel (EN - S235, S355)
Robust shaftless screw RL 140 140 140 49 8 Steel (EN - S235, S355)
Robust shaftless screw RL 140 140 140 55 12 Steel (EN - S235, S355)
Robust shaftless screw RLN 140 140 100 49 8 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RLN 140 140 140 49 8 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RLN 140 140 140 52 10 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RLN 140 140 140 60 18/12 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RL 150 150 100 61 8 Steel (EN - S235, S355)
Robust shaftless screw RL 150 150 105 49 10/6,5 Steel (EN - S235, S355)
Robust shaftless screw RL 150 150 150 49 8 Steel (EN - S235, S355)
Robust shaftless screw RL 150 150 150 49 10 Steel (EN - S235, S355)
Robust shaftless screw RL 150 150 150 50 15 Steel (EN - S235, S355)
Robust shaftless screw RL 150 150 150 60 12/8,5 Steel (EN - S235, S355)
Robust shaftless screw RL 150 150 150 60 14/10 Steel (EN - S235, S355)
Robust shaftless screw RLN 150 150 100 62 10 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RLN 150 150 140 54 10/5 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RLN 150 150 150 49 8 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RLN 150 150 150 50 12 Stainless steel (ASTM - AISI 316)
Robust shaftless screw RLN 150 150 150 56 10/6,5 Stainless steel (ASTM - AISI 310)
Robust shaftless screw RLN 150 150 150 56 13/8,5 Stainless steel(ASTM - AISI 316)
Robust shaftless screw RLN 150 150 170 50 10/5 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RLN 150 150 180 50 10/5 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RL 160 160 105 49 12 Steel (EN - S235, S355)
Robust shaftless screw RL 160 160 160 49 12 Steel (EN - S235, S355)
Robust shaftless screw RL 160 160 160 60 20 Steel (EN - S235, S355)
Robust shaftless screw RLN 160 160 150 49 10/5 Stainless steel (ASTM - AISI 310)
Robust shaftless screw RLN 170 170 180 60 15 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RL 180 180 180 49 10 Steel (EN - S235, S355)
Robust shaftless screw RL 180 180 180 61 15/9,5 Steel (EN - S235, S355)
Robust shaftless screw RL 180 180 180 61 23,5/17 Steel (EN - S235, S355)
Robust shaftless screw RLN 180 180 135 61 9/6 Stainless steel (ASTM - AISI 316)
Robust shaftless screw RLN 180 180 180 60 15,5/9 Stainless steel (ASTM - AISI 310)
Robust shaftless screw RLN 180 180 180 60 18/12,5 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RLN 180 180 180 61 12 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RL 190 190 135 61 12 Steel (EN - S235, S355)
Robust shaftless screw RL 195 195 195 95 20 Steel (EN - S235, S355)
Robust shaftless screw RL 200 200 135 61 12 Steel (EN - S235, S355)
Robust shaftless screw RL 200 200 200 65 15,5/10 Steel (EN - S235, S355)
Robust shaftless screw RL 200 200 250 76 11/8 Steel (EN - S235, S355)
Robust shaftless screw RLN 200 200 135 60 12/6 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RLN 200 200 135 61 10 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RLN 200 200 200 61 10 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RLN 200 200 200 61 11/8 Stainless steel (ASTM - AISI 316)
Robust shaftless screw RLN 200 200 200 65 17/10 Stainless steel (ASTM - AISI 316)
Robust shaftless screw RLN 200 200 200 85 15 Stainless steel (ASTM - AISI 316)
Robust shaftless screw RL 210 210 200 110 8 Steel (EN - S235, S355)
Robust shaftless screw RL 215 215 220 115 29/23 Steel (EN - S235, S355)
Robust shaftless screw RL 220 220 220 61 12 Steel (EN - S235, S355)
Robust shaftless screw RL 230 230 160 61 12 Steel (EN - S235, S355)
Robust shaftless screw RL 230 230 230 76 12 Steel (EN - S235, S355)
Robust shaftless screw RL 230 230 230 94 24/17 Steel (EN - S235, S355)
Robust shaftless screw RL 230 230 230 95 20 Steel (EN - S235, S355)
Robust shaftless screw RL 230 230 230 130 20 Steel (EN - S235, S355)
Robust shaftless screw RLN 230 230 160 60 10/5 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RLN 230 230 230 76 10 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RLN 230 230 160 76 12/6 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RL 240 240 145 140 20 Steel (EN - S235, S355)
Robust shaftless screw RL 240 240 240 76 12 Steel (EN - S235, S355)
Robust shaftless screw RLN 240 240 145 76 10 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RL 250 250 150 42 15 Steel (EN - S235, S355)
Robust shaftless screw RL 250 250 170 76 12 Steel (EN - S235, S355)
Robust shaftless screw RL 250 250 200 89 12 Steel (EN - S235, S355)
Robust shaftless screw RL 250 250 200 89 14/10  Steel (EN - S235, S355)
Robust shaftless screw RL 250 250 250 76 12 Steel (EN - S235, S355)
Robust shaftless screw RL 250 250 280 89 12 Steel (EN - S235, S355)
Robust shaftless screw RL 250 250 300 89 12 Steel (EN - S235, S355)
Robust shaftless screw RL 260 260 260 110 8 Steel (EN - S235, S355)
Robust shaftless screw RLN 270 270 200 102 12/6 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RL 275 275 280 90 15 Steel (EN - S235, S355)
Robust shaftless screw RLN 275 275 260 80 12/6 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RL 280 280 190 89 12 Steel (EN - S235, S355)
Robust shaftless screw RL 280 280 190 89 15 Steel (EN - S235, S355)
Robust shaftless screw RL 280 280 280 89 20 Steel (EN - S235, S355)
Robust shaftless screw RL 280 280 280 90 16/10 Steel (EN - S235, S355)
Robust shaftless screw RL 280 280 280 90 20/13 Steel (EN - S235, S355)
Robust shaftless screw RL 280 280 280 90 25/17 Steel (EN - S235, S355)
Robust shaftless screw RL 280 280 280 100 20 Steel (EN - S235, S355)
Robust shaftless screw RL 280 280 280 104 20 Steel (EN - S235, S355)
Robust shaftless screw RLN 280 280 280 89 10 Stainless steel (ASTM - AISI 304,316)
Robust shaftless screw RLN 280 280 280 89 12 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RLN 280 280 280 90 12/6 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RL 285 285 280 130 35/26 Steel (EN - S235, S355)
Robust shaftless screw RL 300 300 160 76 12 Steel (EN - S235, S355)
Robust shaftless screw RL 300 300 300 89 12 Steel (EN - S235, S355)
Robust shaftless screw RL 300 300 300 105 26/17 Steel (EN - S235, S355)
Robust shaftless screw RLN 300 300 110 220 11/9,5 Stainless steel (ASTM - AISI 316)
Robust shaftless screw RLN 300 300 300 89 10 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RLN 300 300 300 90 12/6 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RLN 300 300 300 102 25/16 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RL 310 310 310 110 8 Steel (EN - S235, S355)
Robust shaftless screw RL 315 315 210 102 12 Steel (EN - S235, S355)
Robust shaftless screw RL 315 315 315 102 12 Steel (EN - S235, S355)
Robust shaftless screw RLN 330 330 250 102 20 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RL 340 340 340 130 36/26 Steel (EN - S235, S355)
Robust shaftless screw RL 350 350 350 102 12 Steel (EN - S235, S355)
Robust shaftless screw RL 350 350 350 105 33,5/20,5 Steel (EN - S235, S355)
Robust shaftless screw RL 350 350 350 169 12 Steel (EN - S235, S355)
Robust shaftless screw RL 350 350 350 250 20 Steel (EN - S235, S355)
Robust shaftless screw RLN 350 350 350 110 20 Stainless steel (ASTM - AISI 310)
Robust shaftless screw RLN 365 365 350 102 20 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RL 380 380 380 180 30/22 Steel (EN - S235, S355)
Robust shaftless screw RLN 380 380 380 140 20 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RL 400 400 265 102 16/9 Steel (EN - S235, S355)
Robust shaftless screw RL 400 400 400 120 12 Steel (EN - S235, S355)
Robust shaftless screw RL 400 400 400 160 40 Steel (EN - S235, S355)
Robust shaftless screw RLN 400 400 400 122 15 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RLN 450 450 370 130 15 Stainless steel (ASTM - AISI 304)
Robust shaftless screw RL 500 500 500 140 16,5/13 Steel (EN - S235, S355)
Robust shaftless screw RL 500 500 500 140 30/25 Steel (EN - S235, S355)
Robust shaftless screw RL 520 520 360 273 25 Steel (EN - S235, S355)
Robust shaftless screw RL 600 600 350 273 25 Steel (EN - S235, S355)
Robust shaftless screw RL 600 600 350 323 20/12,5 Steel (EN - S235, S355)
Robust shaftless screw RL 600 600 500 300 30 Steel (EN - S235, S355)
Robust shaftless screw RL 600 600 500 300 40 Steel (EN - S235, S355)
Robust shaftless screw RL 600 600 600 169 12 Steel (EN - S235, S355)
Robust shaftless screw RL 600 600 600 240 25 Steel (EN - S235, S355)
Robust shaftless screw RL 800 800 600 340 30 Steel (EN - S235, S355)



Black marked types = steel robust shaftless screw design

Red marked types = stainless steel robust shaftless screw design

More than 5 900 units of conveyors for nearly 600 kinds of materials in 34 years of market experience guarantee professionalism even for your demand.

...power of idea
